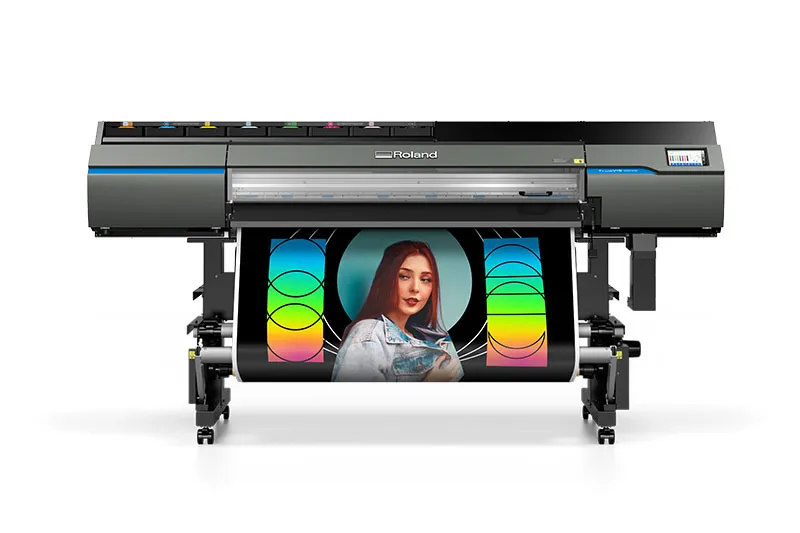

Name: Roland TrueVIS VG3 Series
SKU: ROL-PRI-TrueVIS VG3
Price: 17995.00 USD
Availability: InStock

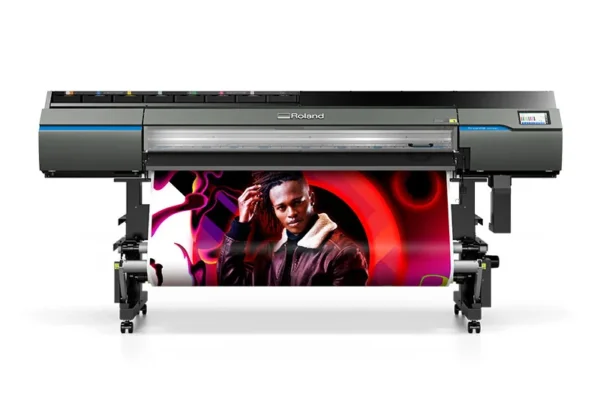

Large-Format Inkjet Printer / Cutter

Experience the power of Roland’s award-winning TrueVIS VG3 large-format inkjet printer/cutters, designed with advanced automation, superior usability, and an extended range of vibrant colors. Enhanced to meet and surpass the high standards of todays sign and graphics experts, the TrueVIS VG3 takes print quality and productivity to new levels. Key features include:

Boosted Efficiency and Ease of Use: Equipped with a 7-inch LCD touchscreen, auto-calibration, and other intuitive, automated tools, the VG3 maximizes productivity and simplifies operations.
Expanded Color Gamut: Achieve even richer, smoother color transitions with an 8-color ink configuration, providing more options for vibrant, true-to-life color reproduction.
Unmatched Precision and Quality: The VG3s four FlexFire printheads, combined with advanced cutting features, deliver incredibly accurate, on-color, and on-brand custom graphics tailored for demanding applications.

Elevate your printing experience with Rolands TrueVIS VG3 and create stunning graphics that are on-point every time.

The best printer for wraps, partial wraps, and other vehicle graphics.

Specifications

TrueVIS VG3 Series

		VG3-640	VG3-540
Printing Method		Piezo ink-jet method
Media	Width	13.2 to 64 in. (335 to 1,625 mm)	11.7 to 54 in. (297 to 1,371 mm)
	Thickness	Max. 39.3 ml (1.0 mm) with liner, for printing Max. 15.7 ml (0.4 mm) with liner and 8.6 ml (0.22 mm) without liner, for cutting
	Roll outer diameter	Max. 9.8 in. (250 mm)
	Roll weight	Max. 99 lb. (45 kg)	Max. 77 lb. (35 kg)
	Core diameter	3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing/cutting width (*1)		Max. 62.9 in. (1,600 mm)	Max. 52.9 in. (1,346 mm)
Ink	Type	TrueVIS INK 500 ml pouch (only white 250 ml)
Ink	Colors	Eight colors (cyan, magenta, yellow, black, light cyan, light magenta, light black, and white) Eight colors (cyan, magenta, yellow, black, light cyan, light magenta, light black, and orange) Eight colors (cyan, magenta, yellow, black, light black, orange, green and white) Eight colors (cyan, magenta, yellow, black, light cyan, light magenta, orange, and green) Seven colors (cyan, magenta, yellow, black, light black, orange, and green) Four colors (cyan, magenta, yellow, and black)
Printing resolution (dots per inch)		Max. 1,200 dpi
Cutting speed		0.39 to 11.8 in/s (10 to 300 mm/s)
Blade force (*2)		30 to 500 gf
Blade	Type	Roland CAMM-1 series blade
Blade	Offset	0.0 to 59 ml (0.000 to 1.500 mm)
Software resolution (when cutting)		0.98 ml/step (0.025 mm/step)
Media heating system (*3)		Print heater set temperature: 86 to 113 (°F 30 to 45 °C) Dryer set temperature: 86 to 131 °F (30 to 55 °C)
Connectivity		Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function		Automatic sleep feature
Rated input		100-120/220-240 Va.c. 50/60 Hz 8.0/4.1 A
Power consumption	During operation	Approx. 1,090 W
Power consumption	Sleep mode	Approx. 50 W
Acoustic noise level	During operation	63 dB (A) or less
Acoustic noise level	During standby	53 dB (A) or less
Dimensions (Width x Depth x Height)		113.7 in. x 29.5 in. x 52.0 in. (2,886 mm x 748 mm x 1,320 mm)	103.7 in. x 29.5 in. x 52.0 in. (2,632 mm x 748 mm x 1,320 mm)
Weight		448 lb. (203 kg)	417 lb. (189 kg)
Environment	During operation (*4)	Temperature: 68 to 89.6 °F (20 to 32 °C), humidity: 35 to 80 % RH (no condensation)
Environment	Not operating	Temperature: 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80 % RH (no condensation)
Included items		Dedicated stands, power cord, Media take-up unit, media holders, replacement blade for separating knife, cleaning liquid, drain bottle, User’s Manual, Software(VersaWorks, Roland DG Connect), etc.
