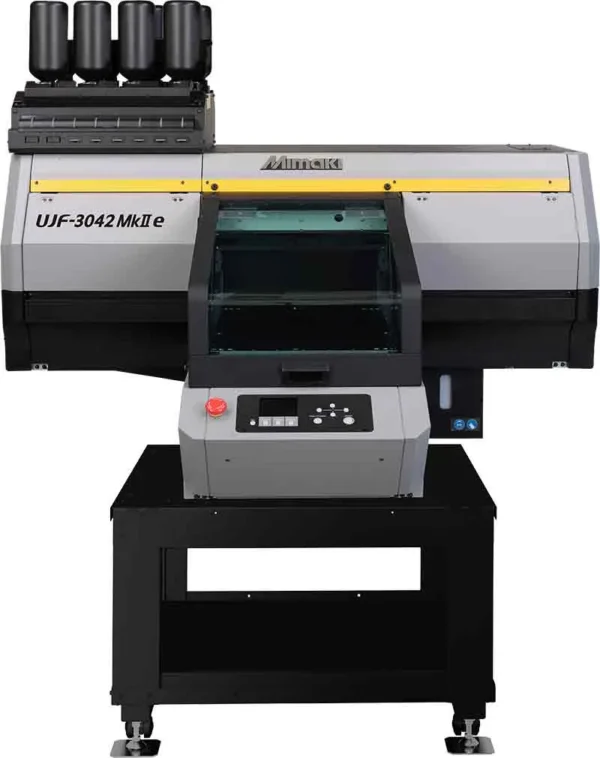

Mimaki UJF-3042 MkII e Series

Designed to bring your ideas to reality, these professional tools deliver consistent quality for any level of production. You can create specialty items, awards, personalized products, component pieces and more.

• Available in 11.8 x 16.5; up to 6 thick
• Enclosed print area reduces dust contamination and UV exposure
• Mimaki Clear Control (MCC) for smoother, cleaner clear effects
• Included RIP software Rasterlink7 has variable data and jig printing functionality
• RIP software RasterLink7 and MDL included
• Raised effects and braille capable
• Enhanced Auto Maintenance Features
• Pair with our desktop 3D printer to produce jigs, molds for thermoforming, or custom models
• Eco-friendly with low VOC, GREENGUARD Gold certified UV-LED Rigid and Flexible ink

  Powerful Personalization On Demand

  Designed to bring your ideas to reality, these professional tools deliver consistent quality for any level of production. You can create specialty items, awards, personalized products, component pieces and more.

  • Available in 11.8 x 16.5; up to 6 thick
  • Enclosed print area reduces dust contamination and UV exposure
  • Mimaki Clear Control (MCC) for smoother, cleaner clear effects
  • Included RIP software Rasterlink7 has variable data and jig printing functionality

  • RIP software RasterLink7 and MDL included
  • Raised effects and braille capable
  • Enhanced Auto Maintenance Features
  • Pair with our desktop 3D printer to produce jigs, molds for thermoforming, or custom models
  • Eco-friendly with low VOC, GREENGUARD Gold certified UV-LED Rigid and Flexible inks

    Inks

    UV Curable Ink (LH-100)	Cyan	Magenta	Yellow	Black	White	Clear
    250ml Bottle	I-LH100-C-B2-1	I-LH100-M-B2-1	I-LH100-Y-B2-1	I-LH100-K-B2-1	I-LH100-W-B2-1	I-LH100-CL-B2-1
    1L Bottle	LH100-C-BA	LH100-M-BA	LH100-Y-BA	LH100-K-BA	LH100-W-BA	LH100-CL-BA



    Curable Ink (LUS-120)	Cyan	Magenta	Yellow	Black	White	Clear
    250ml Bottle	I-LUS12-C-B2-1	I-LUS12-M-B2-1	I-LUS12-Y-B2-1	I-LUS12-K-B2-1	I-LUS12-W-B2-1	I-LUS12-CL-B2-1
    1L Bottle	LUS12-C-BA	LUS12-M-BA	LUS12-Y-BA	LUS12-K-BA	LUS12-W-BA	LUS12-CL-BA



    UV Curable Ink (LUS-150)	Cyan	Magenta	Yellow	Black	White
    1L Bottle	LUS15-C-BA	LUS15-M-BA	LUS15-Y-BA	LUS-15-K-BA	LUS-15-W-BA



    UV Primer (PR-200)	Primer
    250ml Bottle	PR200-Z-BA
    1L Bottle	PR200-Z-BA



  Specifications

  Printhead	UJF-3042MkII e: Three on-demand piezo heads in a staggered array UJF-3042MkII EX e: Four on-demand piezo heads in a staggered array
  Print Resolutions	Maximum: 1200 x 1200 dpi
  Print Speed (4 color mode)	26.7 ft2/hr (2.5m2/hr)
  Maximum Print Area	11.8³ x 16.5³ (300 x 420 mm)
  Maximum media area	14 x 18
  Maximum Media Thickness	up to 6.02³ (153 mm)
  Maximum Media Weight	11.0 lbs. (5.0 kg)
  Ink Type	Rigid: LH-100,  Flexible: LUS-120, LUS-150
  Interface	Ethernet 1000BASE-T, USB2.0 Hi-speed
  Power Supply	Single-phase AC100-240V, ±10%, 50/60Hz ±1Hz
  Power Consumption	AC100V: 1,000W or less
  Operational Environment	Temperature 68° “ 86° F (20-30° C) Humidity: 35“65 % RH (Non condensing)
  Dimensions (W × D × H)	53.4³ x 50.8³ x 33.7³ (135.6 x 129 x 85.6 cm)
  Weight	297.6 lbs. (135 kg)
  Certifications	VCCI class A / FCC class A / ETL UL 60950-1 / CB / CE Marking (EMC, Low voltage, Machinery directive, and RoHS)/ REACH / Energy Star / IEC60825-1

  Our Core Technologies



  Mimaki Fine Diffusion



  Advanced Pass System



  Waveform Control



  Nozzle Check Unit



  Nozzle Recovery System



  Mimaki Circulation Technology

  Frequently Bought Together



  The Kebab option for UJF Series offers 360-degree direct printing on a wide range of objects, such as stainless steel tumblers, bottles, cans, vases, packaging and candle holders. This accessory is easily mounted to the printer™s flatbed table and functions intuitively via our RasterLink6 software.

  Kebab
